Watermelon Cottage

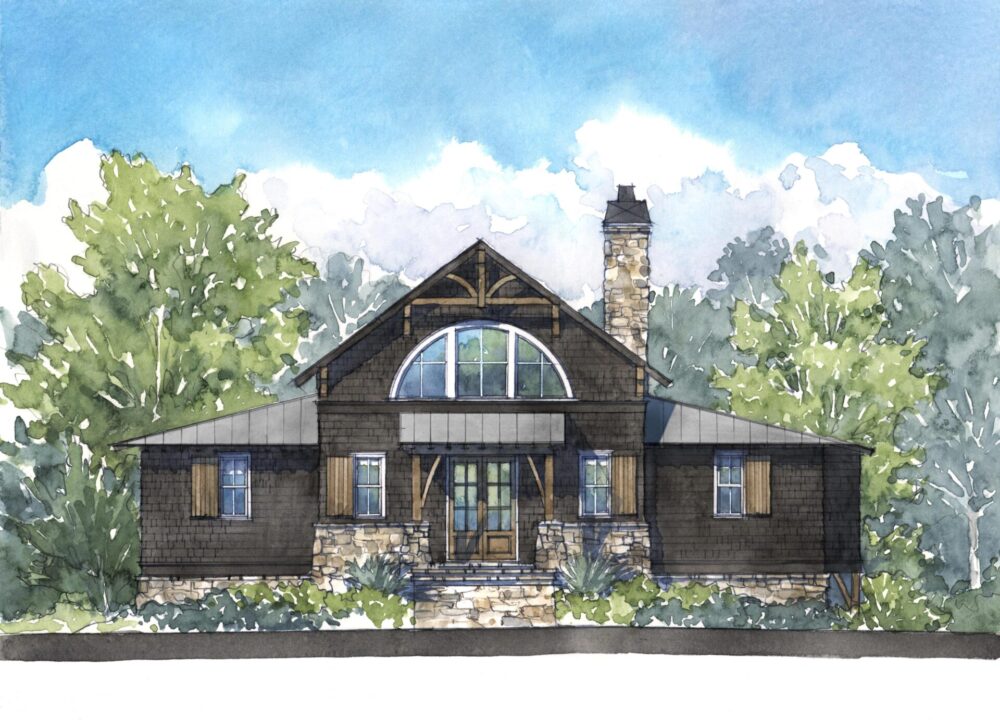

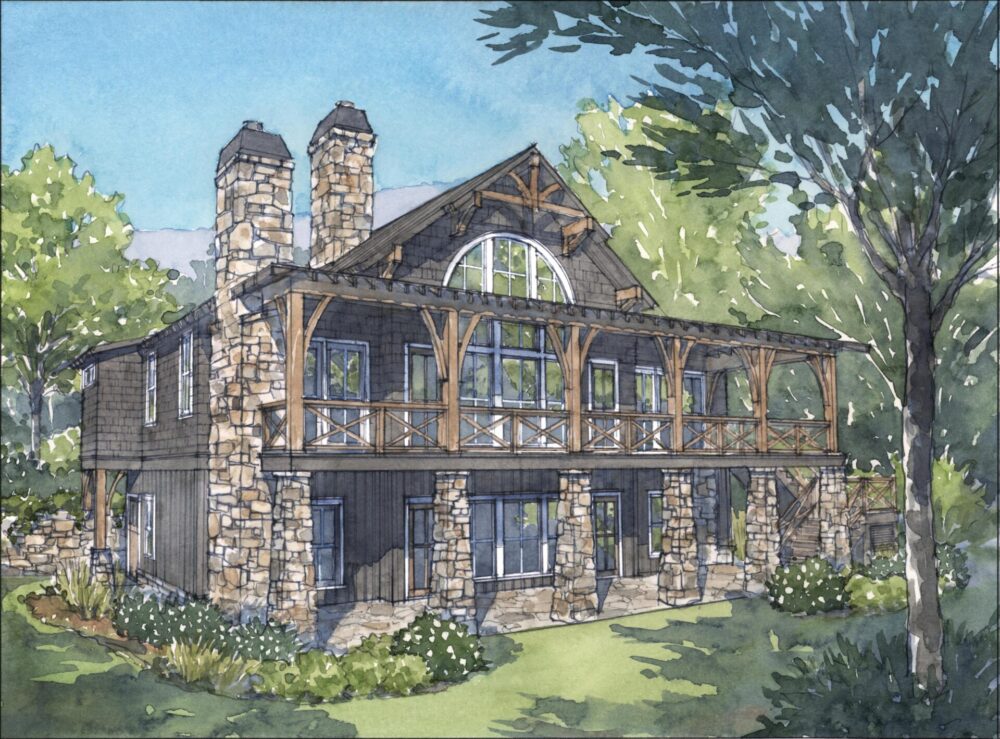

The Watermelon Cottage features an open floor plan with large back porch for today’s casual living style. Large watermelon-shaped windows are located at both the front and rear of the center living section, giving this plan it’s trademark name.

Bedrooms: 4
Baths: 3.5
Main Floor Sq. Ft.: 1609
Terrace Floor Sq. Ft.:1557 heated; 96 sq. ft. unheated
Loft Floor Sq. Ft.: 165
Width: 56’0″
Depth: 49’0″

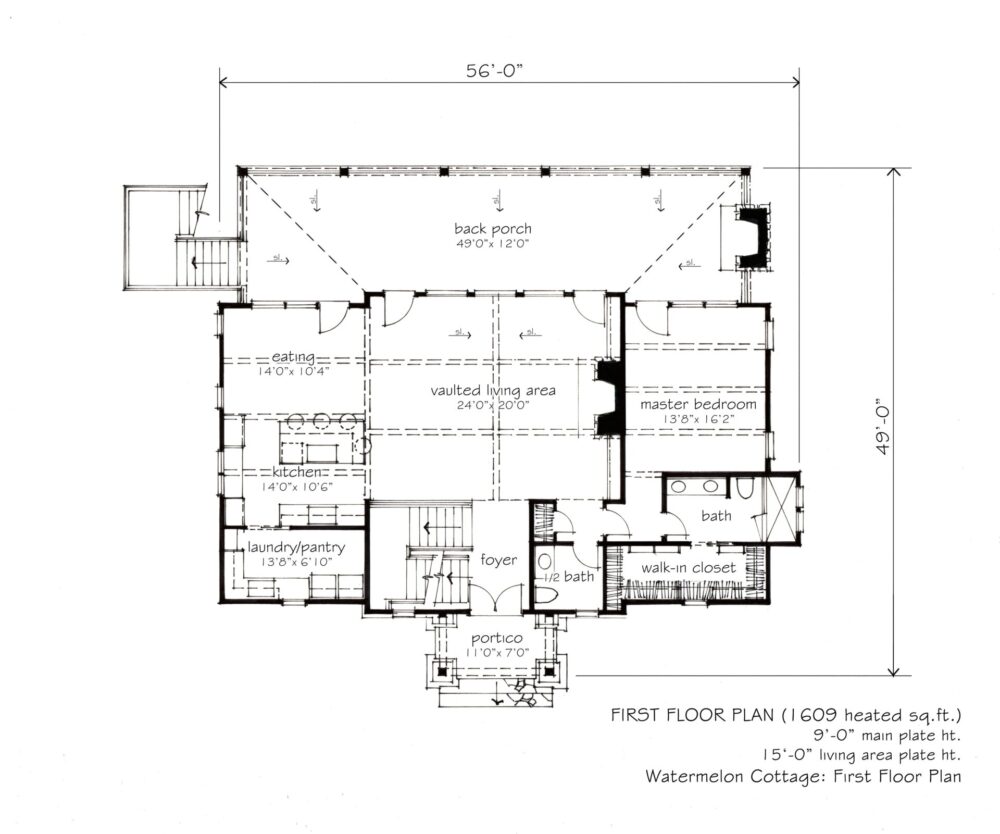

Main Floor Ceiling Height: 9 ft.; Master Bedroom on main floor, open Kitchen/Eating/Living areas.

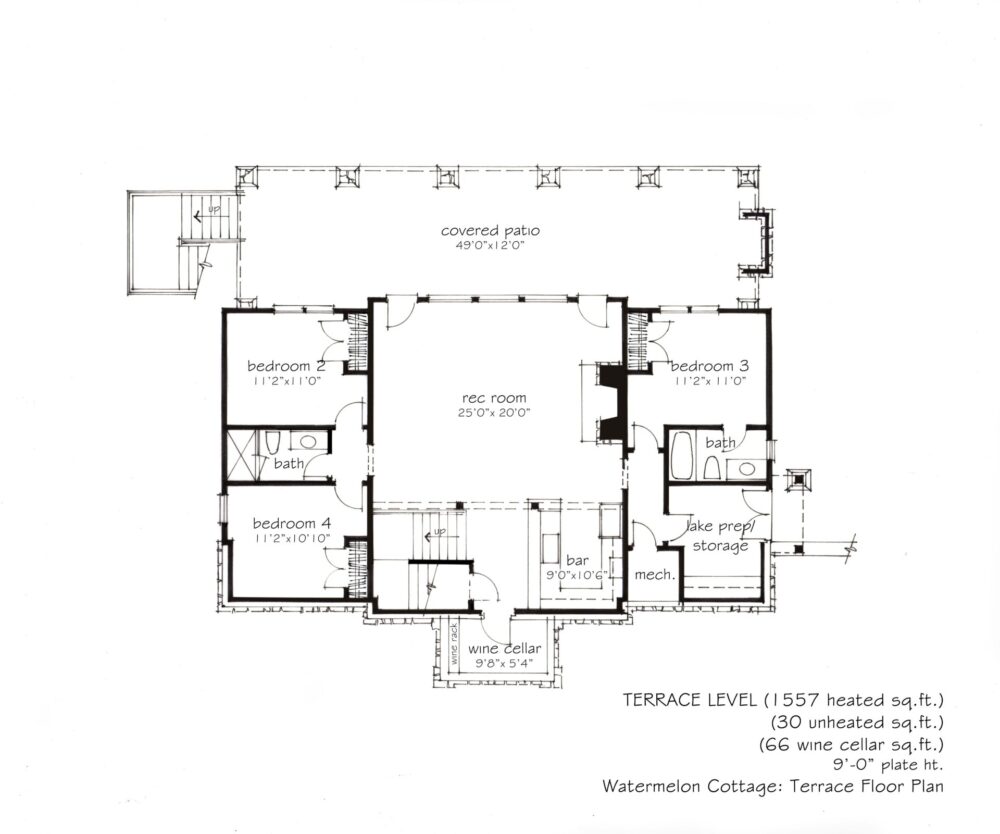

Terrace Floor Ceiling Height: 9 ft.; 3 Bedrooms and Loft upstairs, with 2 Baths and wine cellar.

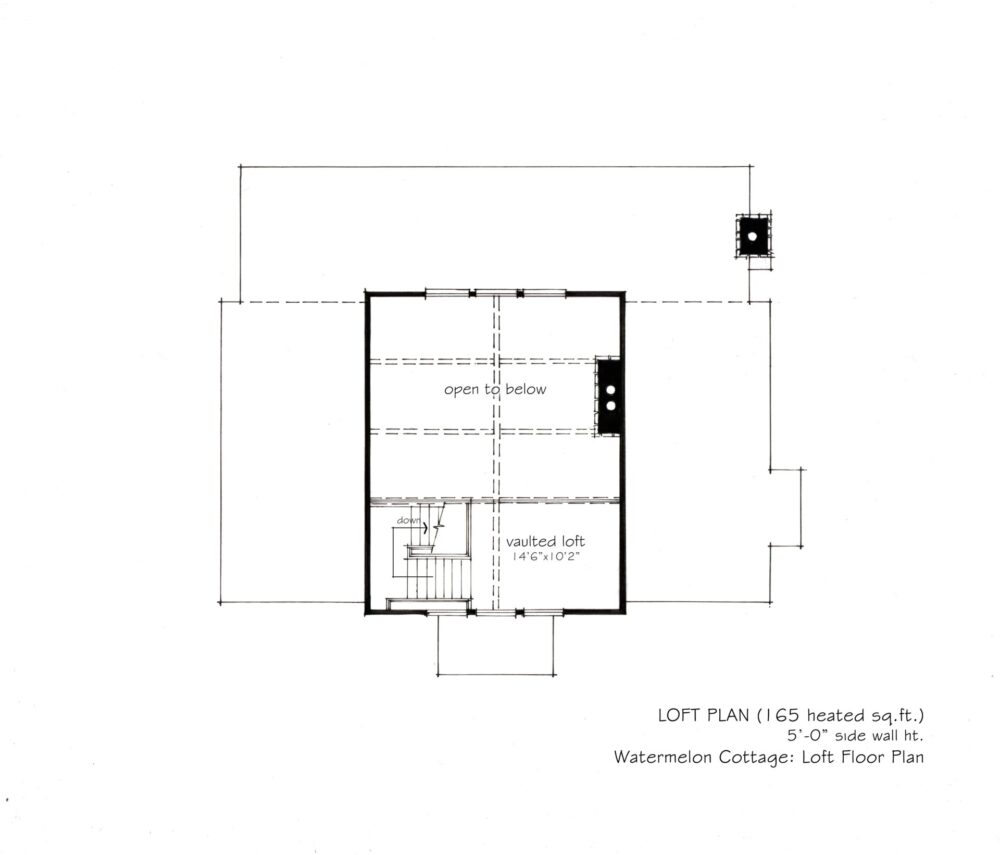

Loft Floor Ceiling Height: 5 ft.; Loft


Plans are available in downloadable format only. Once you download the PDF’s they can be shared or printed at your convenience. These PDF’s can be printed on 24″x36″ sheets at any large-format printing company in your local area. Stock plans do not include HVAC layouts or material list.
